Card mạng server 4 Port LAN Gigabits Winyao WYI350-T4

Card mạng server 4 Port LAN Gigabits. Giao tiếp PCI-E 4x, sử dụng cho máy server, máy server game

2,250,000₫

Mã hàng: #2696

Tình trạng: Còn Hàng

Đặc điểm nối bật:

Card mạng server 4 Port LAN Gigabits Winyao WYI350-T4

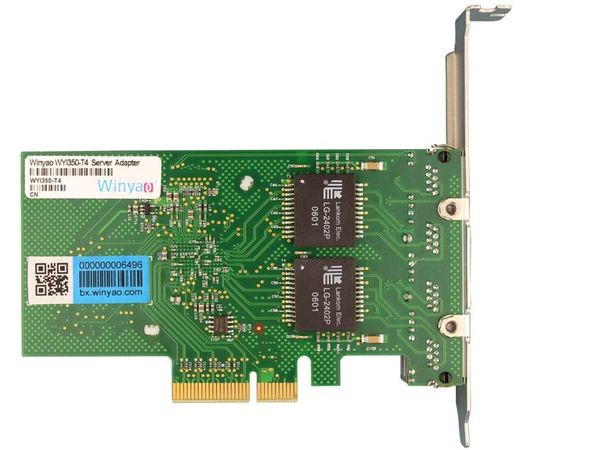

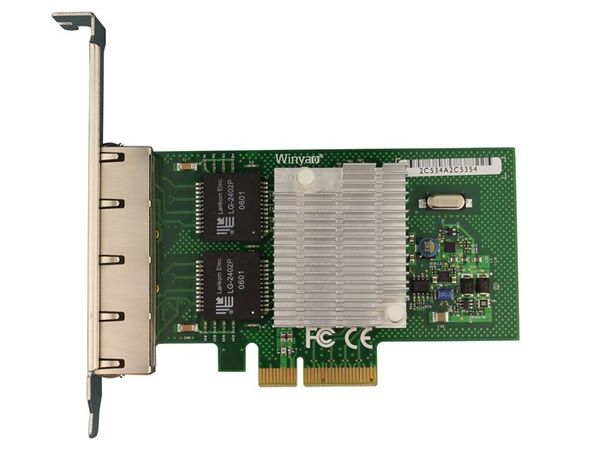

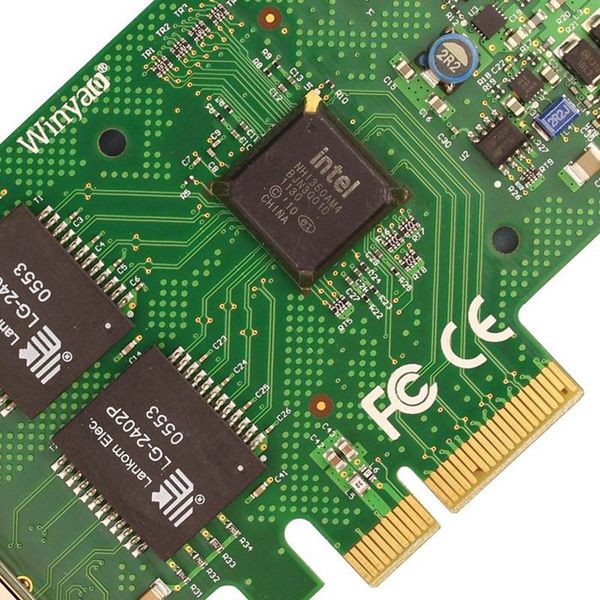

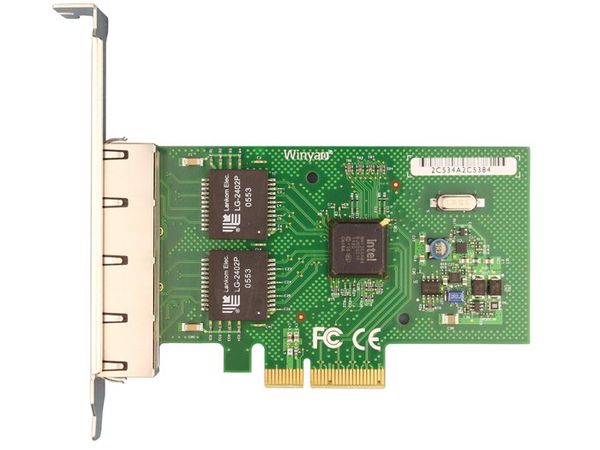

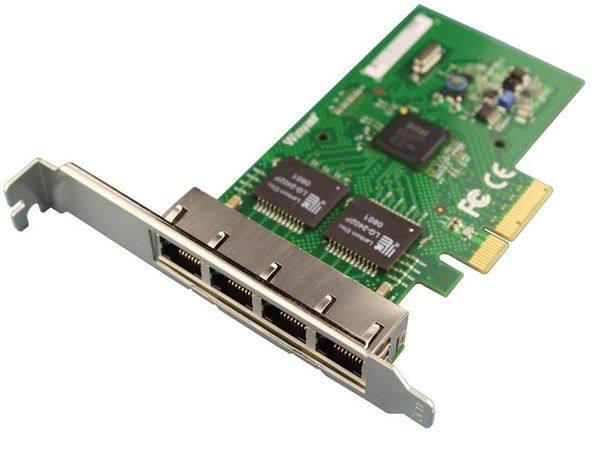

Winyao WYI350-T4 is based on intel I350AM4 Gigabit Ethernet Controller。Is PCI-Express X4 network interface card that contains  Quad Gigabit RJ45 ports on a PCI-Express adapter.



Performance Features:

8 Transmit and 8 Receive queues per port.

Up to 8 queues of Receive Side Scaling (RSS) minimize CPU utilization across multiple processor systems

Support PCI-SIG Single-Root I/O virtualization Rev 1.1.

Support for up to 8 virtual function ( VFs)

Partial replication of PCI Configuration space

Support for 8 pools (single queue) of virtual machine Device Queues (VMDq) per port

Support Direct Cache Access (DCA).

Support Intel I/O Acceleration Technology v3.0.

TSO interleaving for reduced latency

Minimized device I/O interrupts using MSI and MSI-X

UDP, TCP and IP checksum offload

UDP and TCP transmit segmentation offload (TSO). machine

SCTP receive and transmit checksum offload.

Packet interrupt coalescing timers (packet timers) and absolute-delay interrupt timers for both transmit and receive operation.

EEE (IEEE 802.3az) for reduced power consumption during low link utilization periods.



Copper Gigabit Ethernet 1000Base-T:

Independently copper Gigabit Ethernet channels support four Gigabit Ethernet (1000Base-T), Fast Ethernet (100Base-Tx) and Ethernet (10Base-T).

Triple speed 1000Mbps (1000Base-T), 100 Mbps (100Base-Tx) and 10 Mbps (100Base-T) operation.

Nway auto negotiation automatic sensing and switching between 1Gbps full duplex and 100 / 10 Mbps operations Simplex or Full Duplex.

RJ-45 female connectors



Common Key features:

Support PCI Express Base Specification 2.1 (5 GTs)

High performance, reliability, and low power use in Intel i350 Quad integrated MAC + PHY and SERDES chip Controllers.

Ultra deep, packet buffer per channel lowers CPU utilization.

Hardware acceleration that can offload tasks from the host processor. The Controllers can offload TCP/UDP/IP checksum calculations and TCP segmentation.

Server class reliability, availability and performance features:

Link Aggregation and Load Balancing

Priority queuing – 802.1p layer 2 priority encoding

Virtual LANs –802.1q VLAN tagging.

Jumbo Frame (9.5KB)

802.x flow control.

Multicast/ broadcast Packet replication

Supports Vital Product Data (VPD)

LEDs indicators for link/Activity/Speed status

OS: Win xp,Linux,Win 2000,Win 2008,Win vista,Win7 32,Win7 64,Win8 32,Win8 64,Mac OS X
